KA200-033 · KING AIR 200/B200 · ATA 33

King Air 200/B200 Lighting Systems and Fault Isolation

10 lessons

Understand actual lighting architecture and task branches

10 practice cases

Make two related fault interpretations in each case

3 measured jobs

Complete five supported fields in every job
WWAOG King Air 200/B200 lighting systems course

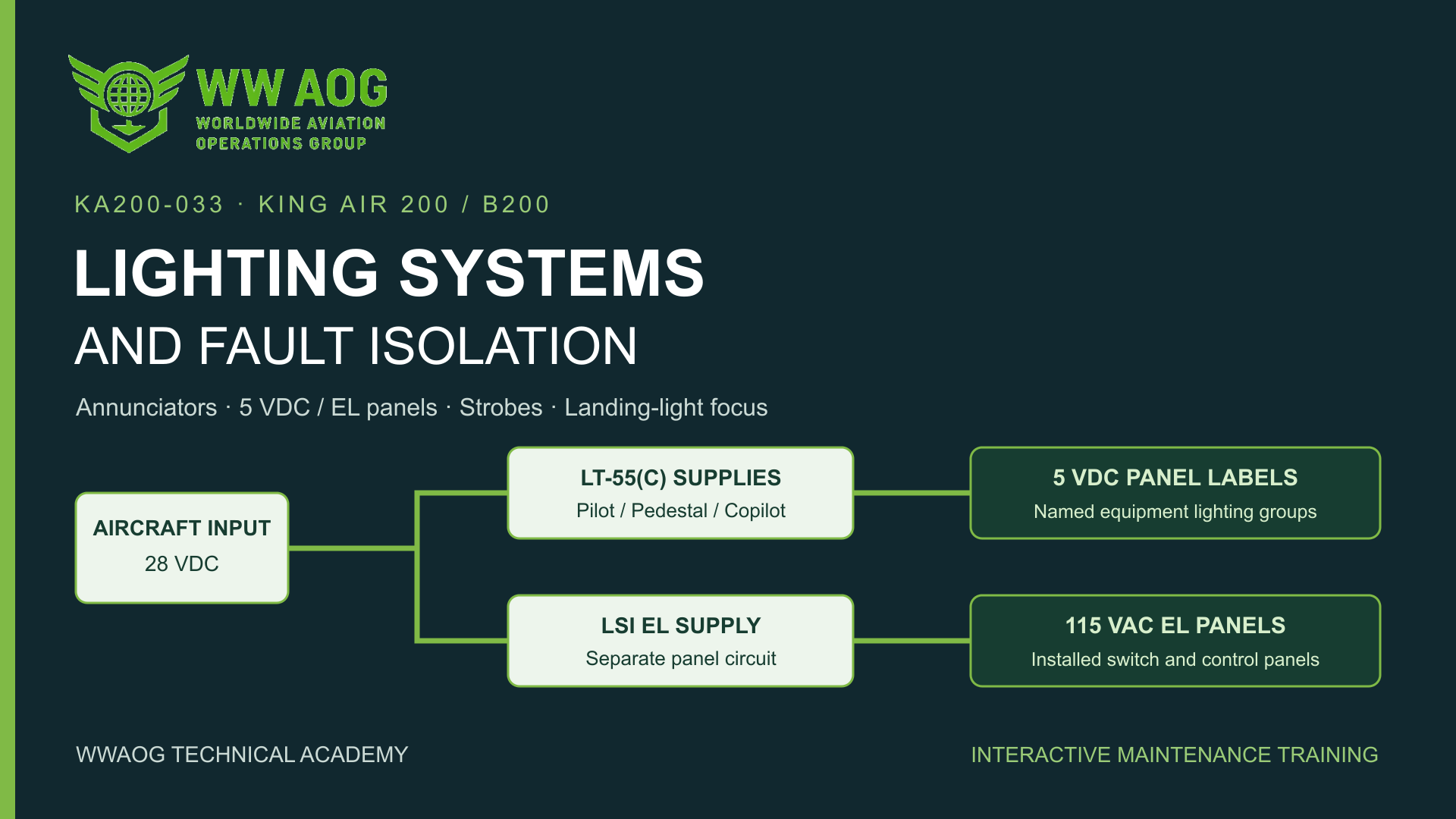

Trace classic annunciators, Pro Line 21 panel lighting, electroluminescent panels, installed strobe supplies and landing-light focus. A 38-page handbook and five interactive visual views connect ten lesson decisions, ten paired fault cases and three independent five-field jobs. Includes a separate 40-question final at 80%. A real Pro Line 21 cockpit photo guide locates the FGP, PFDs, MFD and RTU and connects their visible panel labels to the named lighting groups.

Your course includes

  • Ten system lessons with worked examples and required decisions.
  • Five original interactive lighting views with clickable named components.
  • Ten coached two-part cases and three independent measured work records.
  • A 38-page downloadable student handbook with related manual task references.
  • A separate 40-question final at 80% and a certificate after required course activities.

Annunciator attention and brightness

Separate the actual condition, continuing legend, flasher acknowledgment, CAUTION OFF reminder and photoelectric dimming override.

Actual cockpit lighting power paths
