King Air 200/B200 PT6A-41/-42 Engine Control Rigging and Adjustment

3 training installations

Earlier -41, earlier -42 and later four-blade -42 controls

10 system lessons

Trace the named control mechanism and its adjustment task

10 paired cases + 4 jobs

Required exercises follow your selected installation

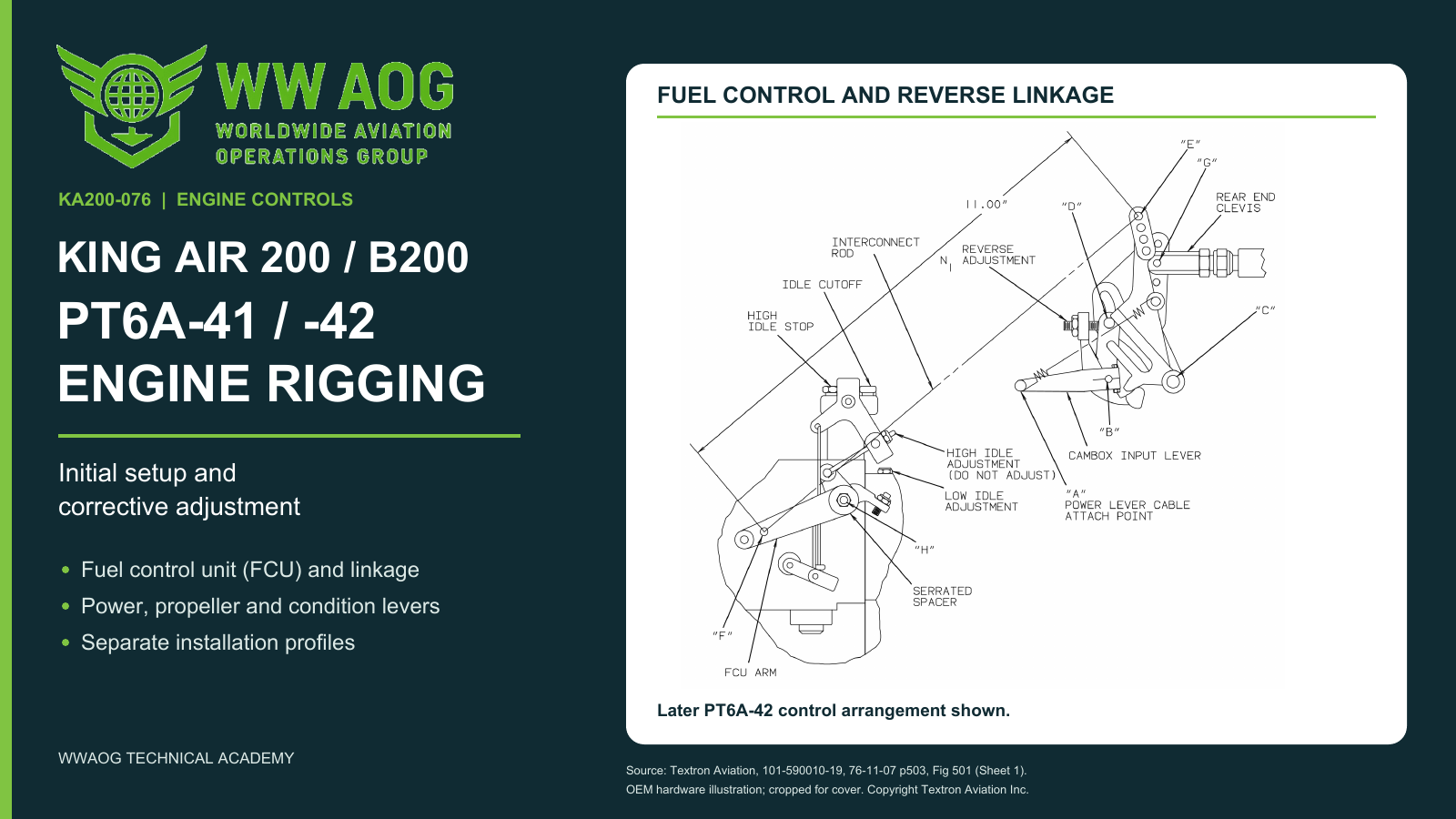

King Air 200/B200 PT6A-41/-42 rigging — actual FCU and cambox linkage; later PT6A-42 arrangement shown
Learn how the cockpit power, propeller and condition levers move the FCU arm, cambox, governor and beta/reverse linkage. Use the 56-page handbook and interactive workbench to distinguish constant and progressive power-lever splits, choose the named adjustment and assess fresh results. Select an earlier PT6A-41, earlier PT6A-42 or later four-blade PT6A-42 training installation.

What's included?

  • Clickable control diagrams and before/after adjustment workbenches
  • Three profiles with separately saved applicable decisions and paired cases
  • Four five-field rigging jobs across the installed-control profiles
  • 40-question combined final · 80% to pass
  • 56-page illustrated handbook and shared-linkage method guide

Establish the right dry-rig reference

Identify the FCU arm, cambox, interconnect rod and attachment holes before setting the linkage. Compare the earlier FCU-arm reference with the later A-B-C cambox alignment, then connect condition-control cutoff and propeller cable travel to their separate checks.

Correct the named fault and measure again
